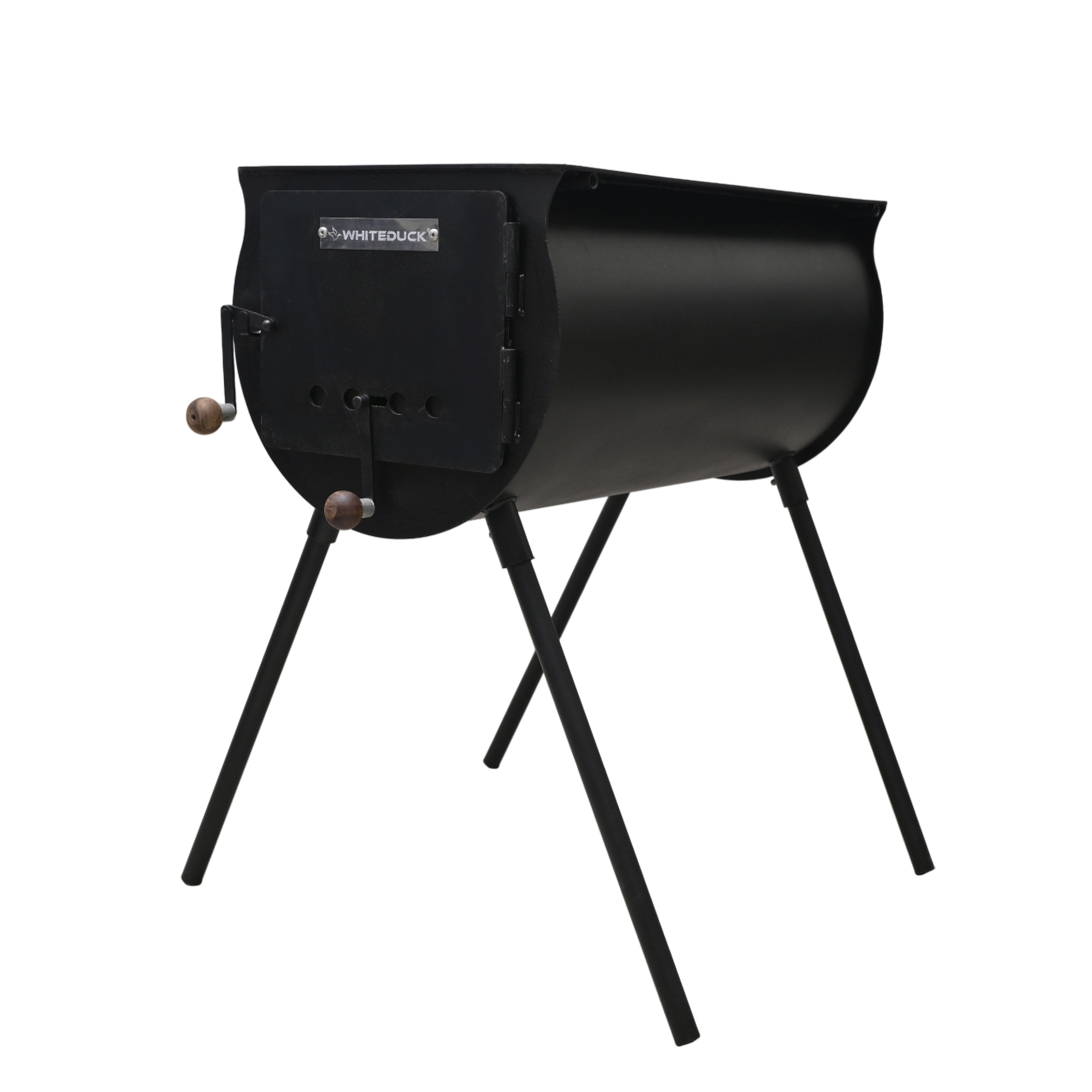

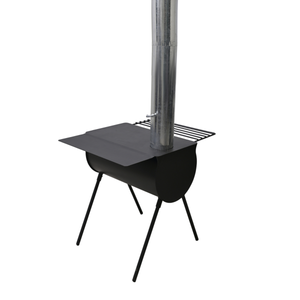

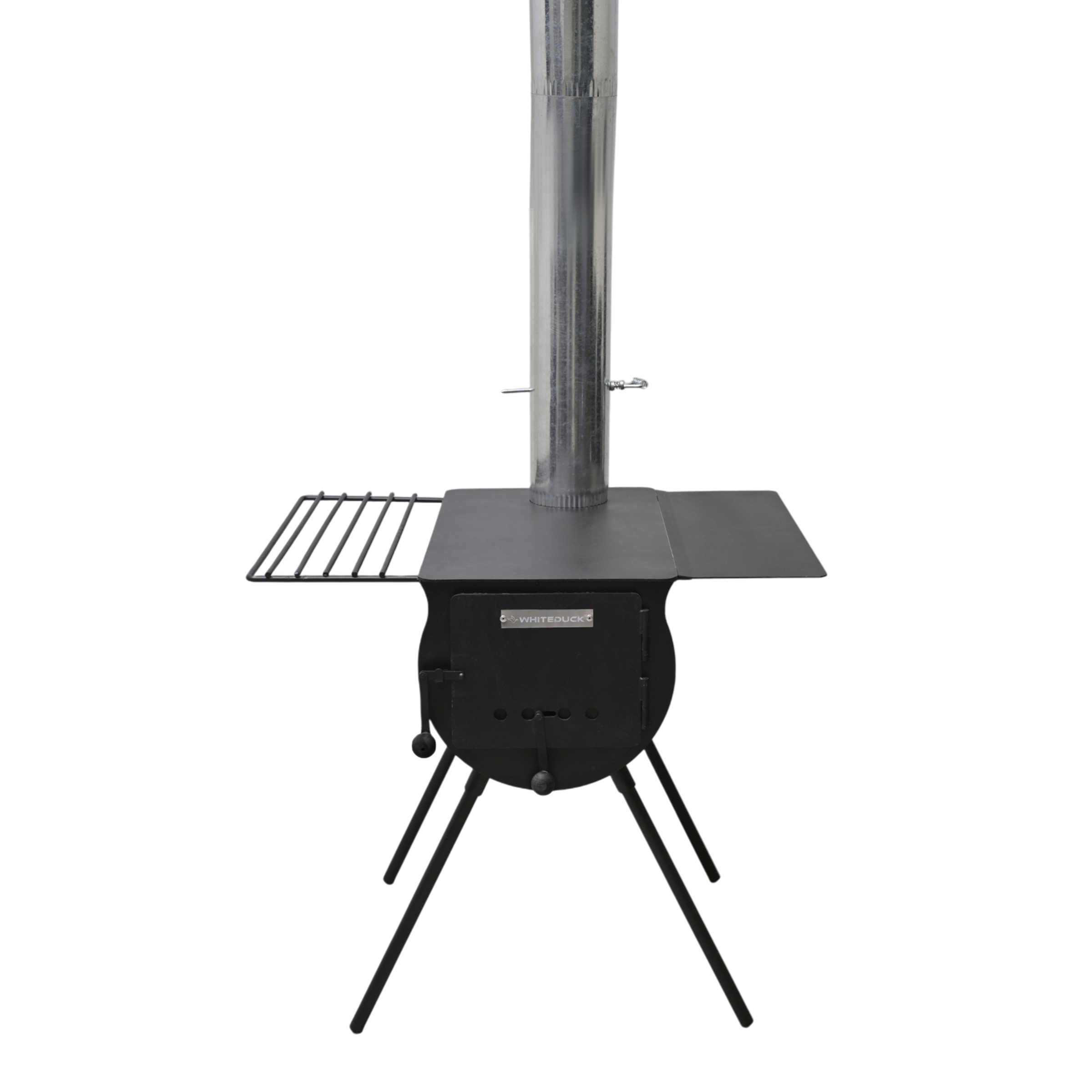

Built from heavy-duty heat-resistant steel and engineered for consistent airflow, the Anchor Stove delivers reliable heat in demanding conditions. The PACKDOWN™ design makes it easy to pack, transport, and store, while the included components give you a complete heating and cooking solution straight out of the box.

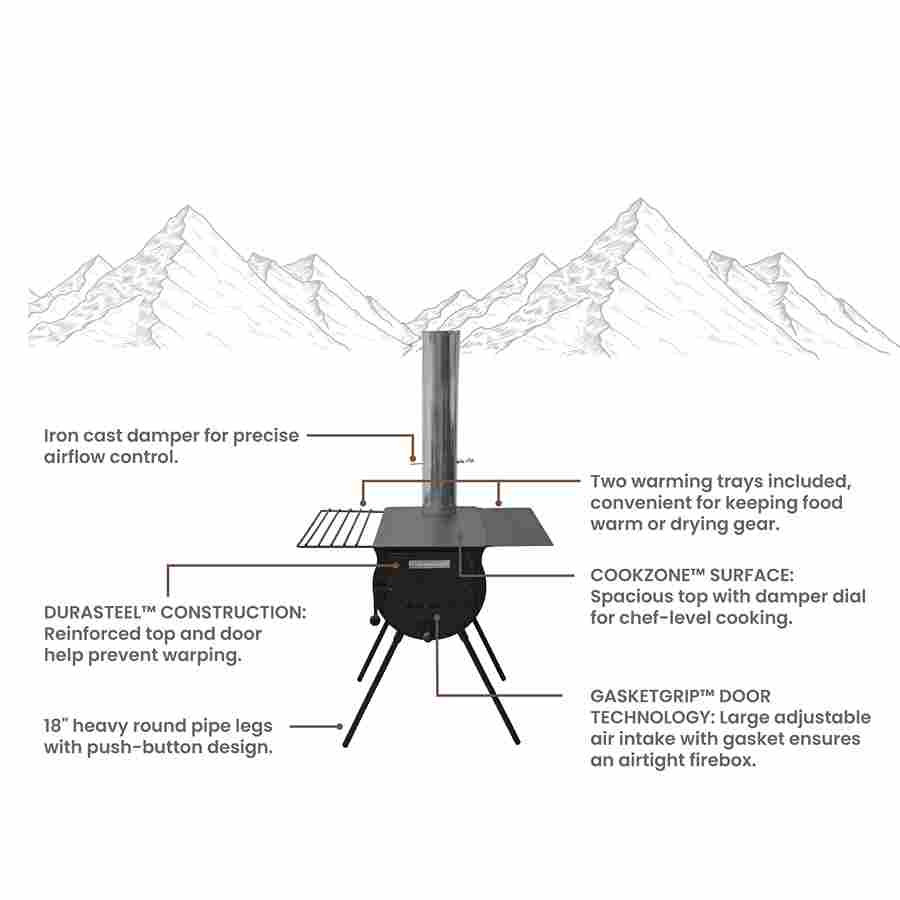

Features:

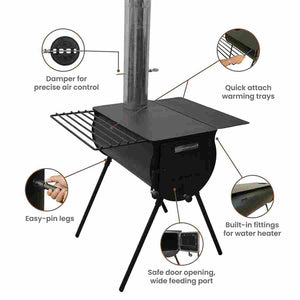

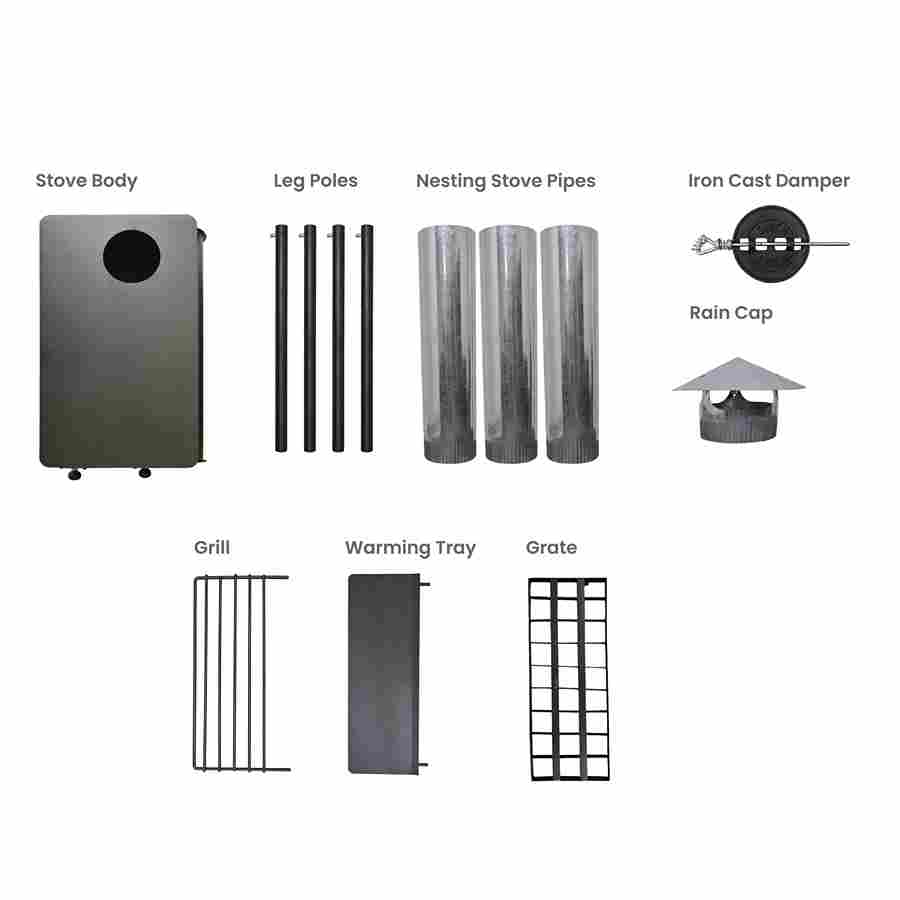

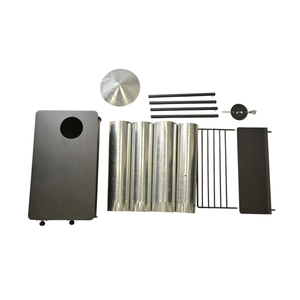

- FULLSTACK STOVE SYSTEM™: Includes stove body, leg poles, nesting pipes, rain cap with spark arrestor, damper, grate, and warming trays.
- PACKDOWN™ Design: Easy to pack down — most components store inside the stove for compact transport.
- DURASTEEL™ Construction: Welded 12-gauge heavy-duty hot-rolled steel. Extra thickness prevents warping; door and top surface use 9-gauge steel for added durability.
- Design: Round/cylinder shape minimizes warping, with reinforcement braces beneath the stove top to ensure it remains flat.

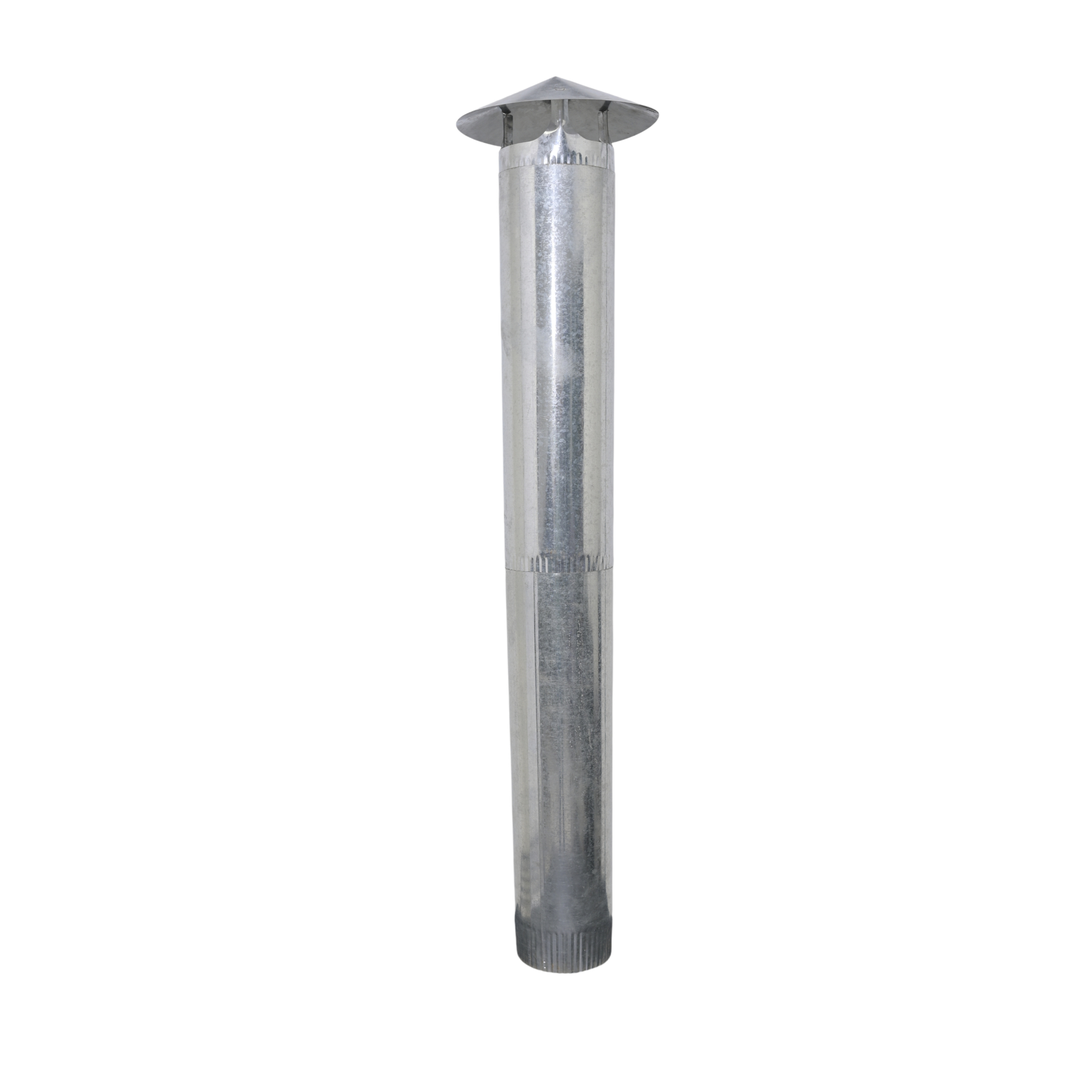

- Nesting Pipe: 5–6" pipe enables vertical stove installation, extending 1–2 feet above the tent for safe spark dispersion.

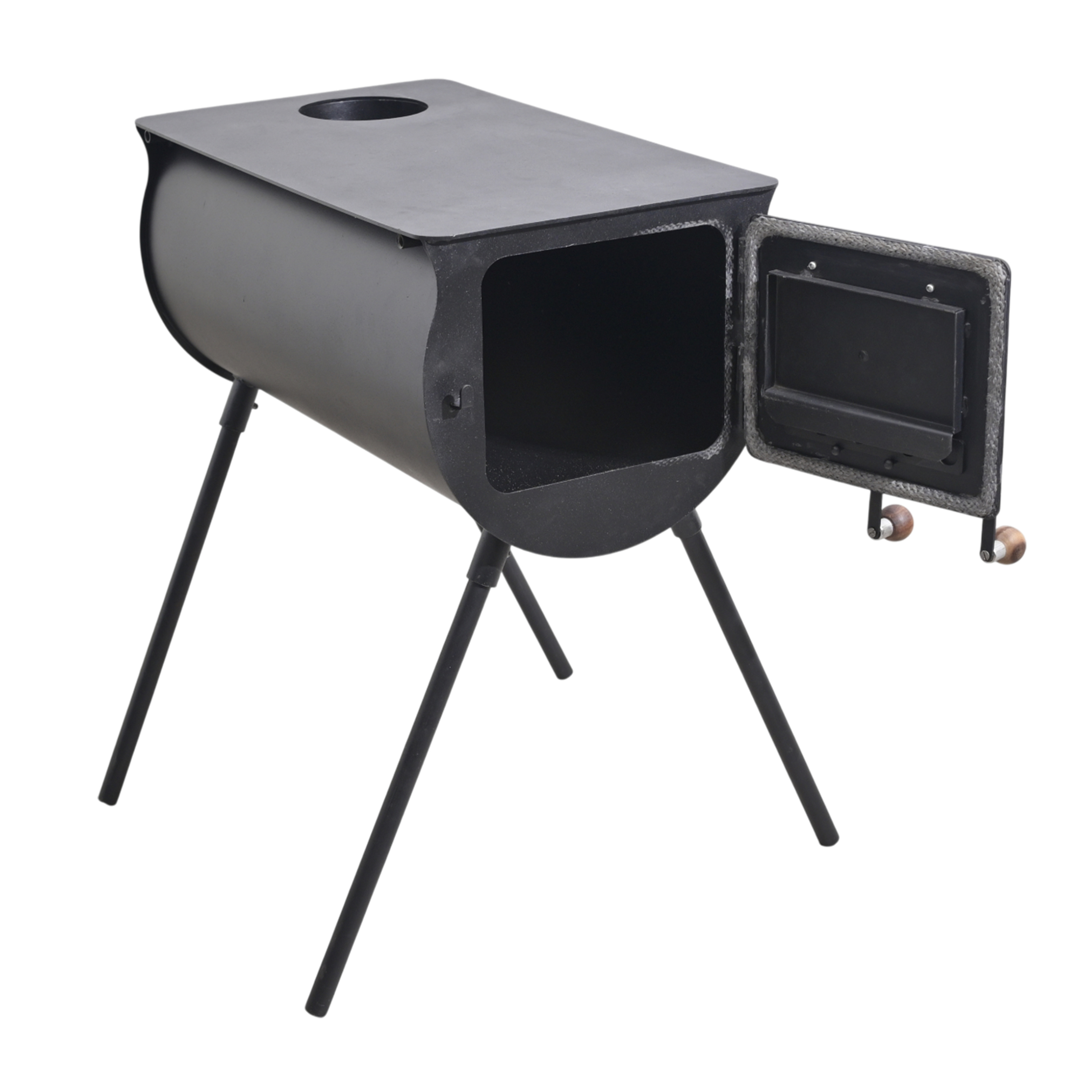

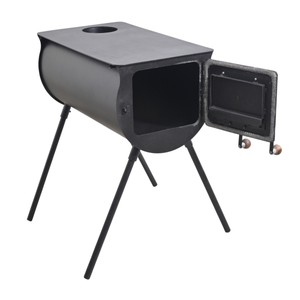

- GASKETGRIP™ Door Technology: Large adjustable air intake with gasket ensures an airtight firebox for controlled and longer burn times. Quality door with adjustable latch.

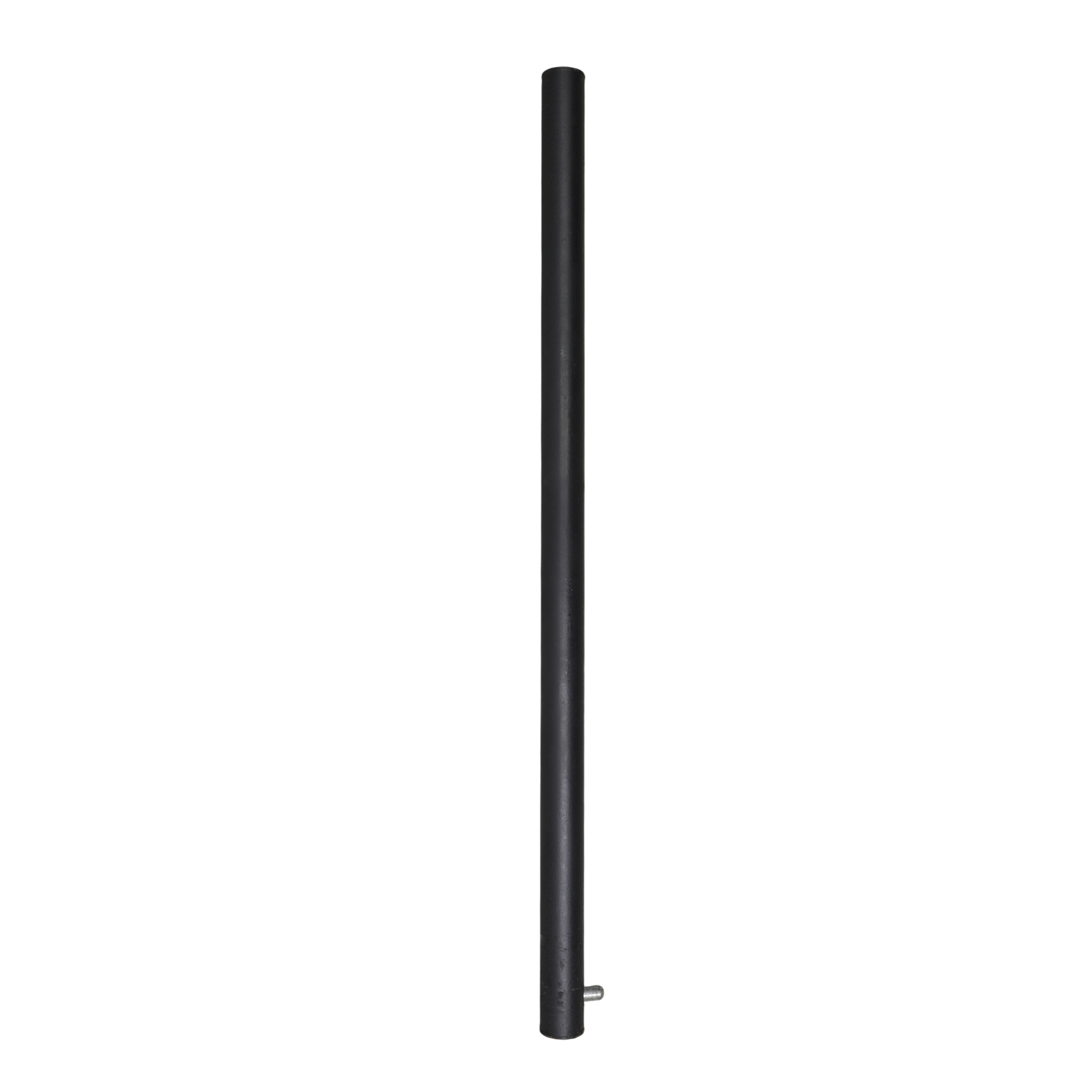

- Leg Poles: 18" heavy round pipe legs with push-button design for secure placement and leveling. Fully removable for easy transport.

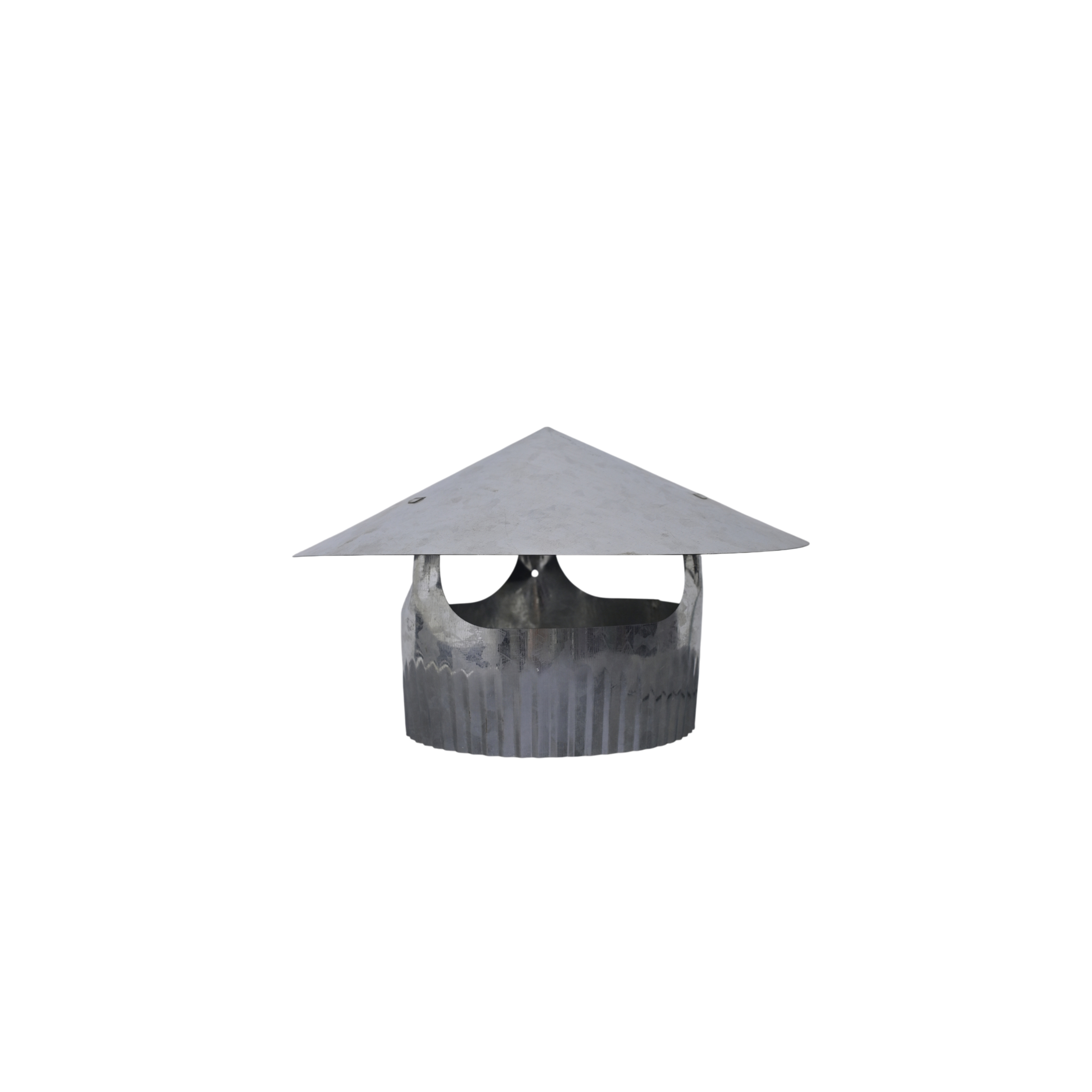

- Rain Cap: Includes integrated spark arrestor for safe outdoor use.
- Damper: Iron-cast damper allows precise airflow control for improved fuel efficiency and safer operation.

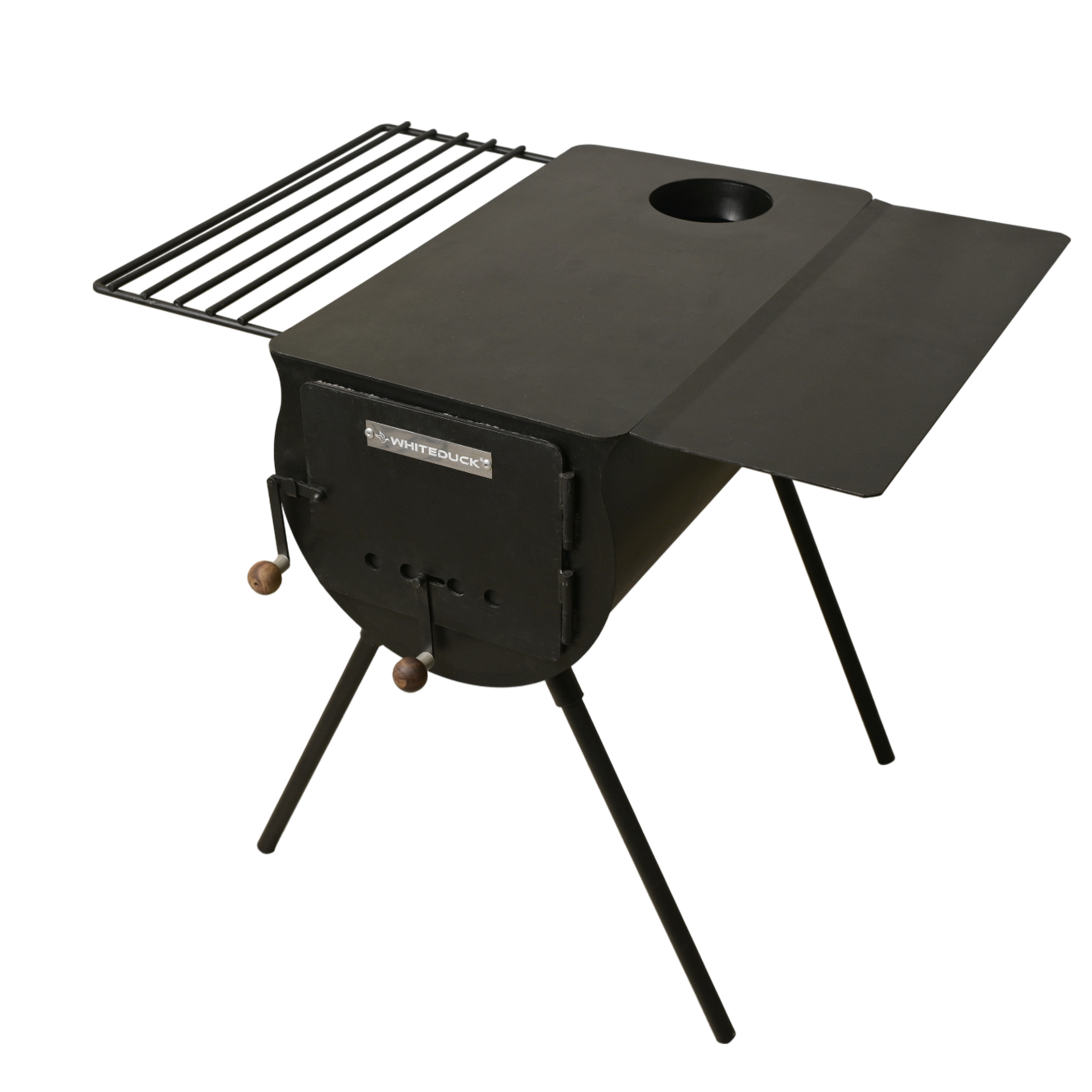

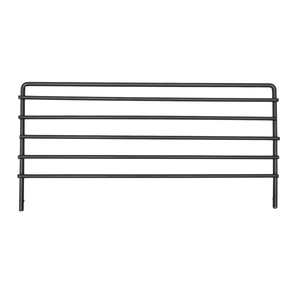

- Warming Trays: Two trays included — one plain and one grill — can be attached on either side.
- COOKZONE™ Surface: Flat, spacious top ideal for cooking.
- Grate: Compatible with coal and wood; enhances heat output and airflow for hotter fires.
- Optional Accessories: Stainless steel 3-gallon water tank available separately; fits on either side of the stove.

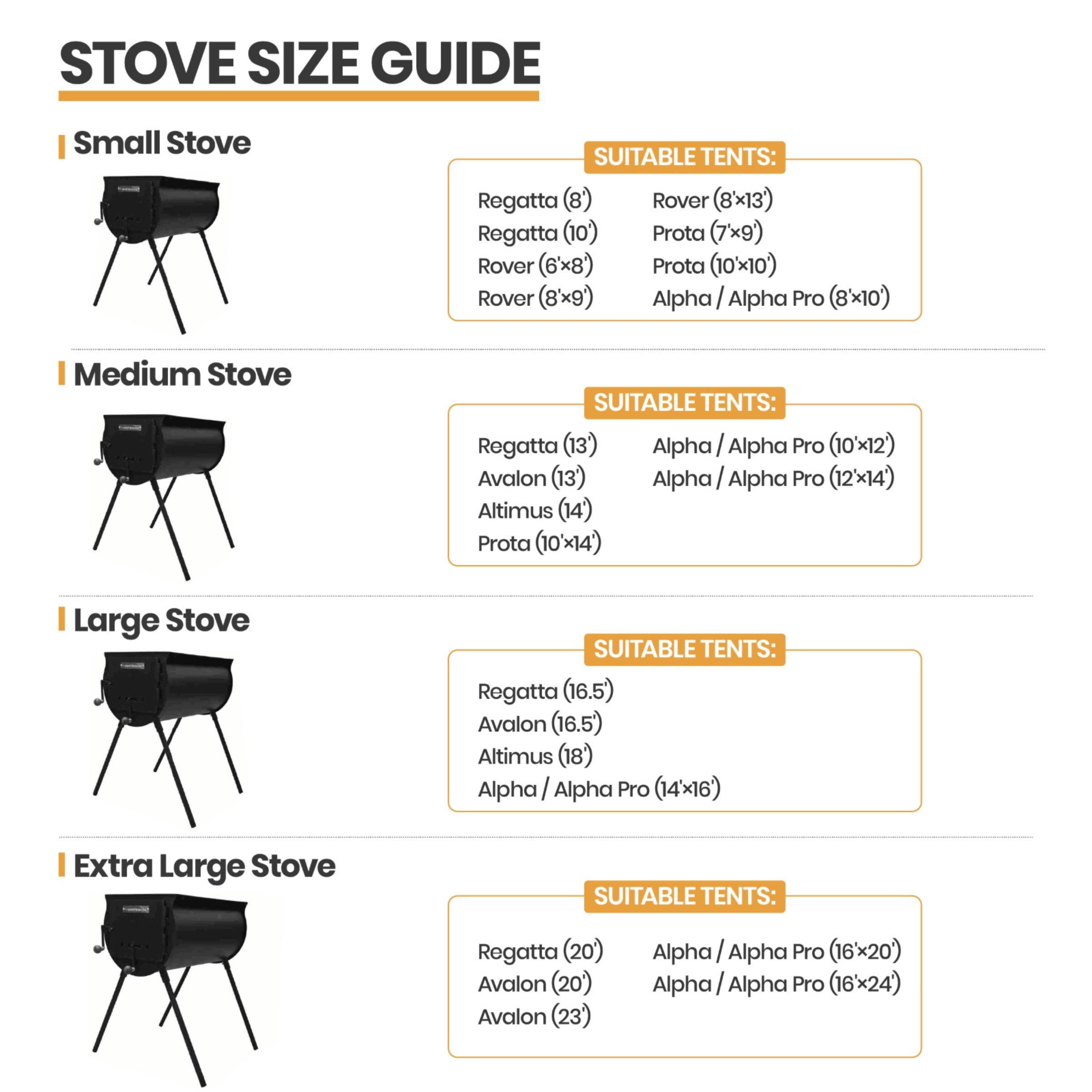

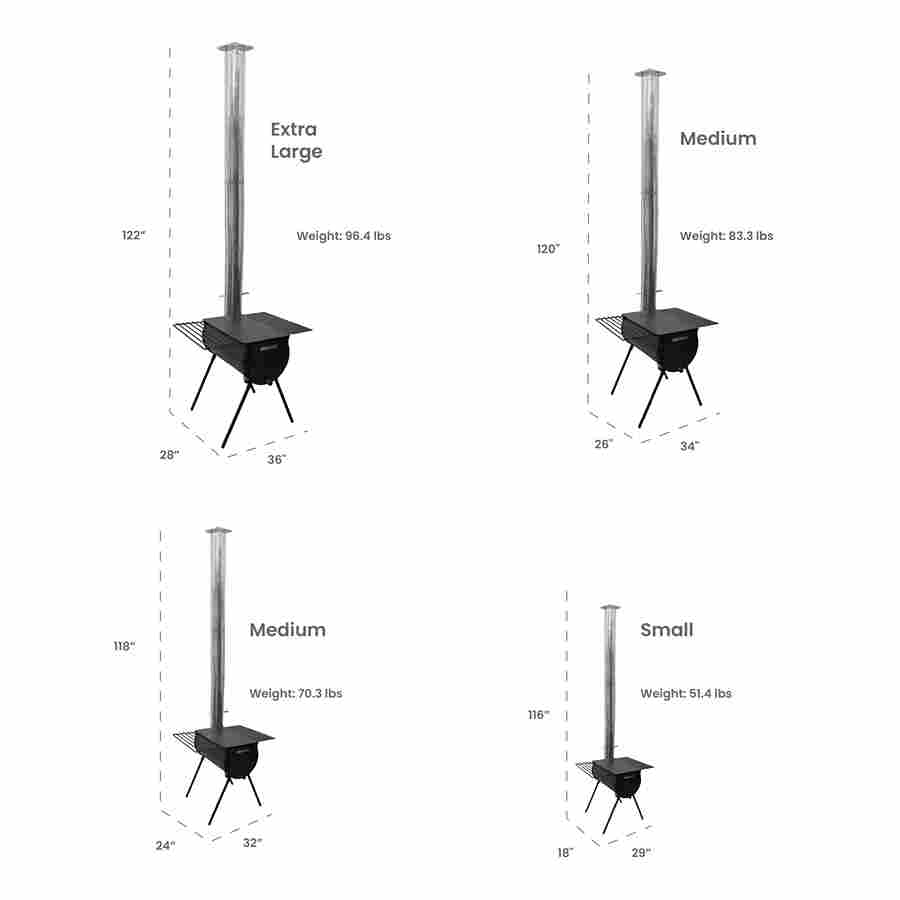

- Heating Capacity: Efficiently heats 100–300 ft² of tent space depending on firebox size and model.
Download Assembly Instructions
Specifications:
- Firebox Volume: 1.25 cu ft

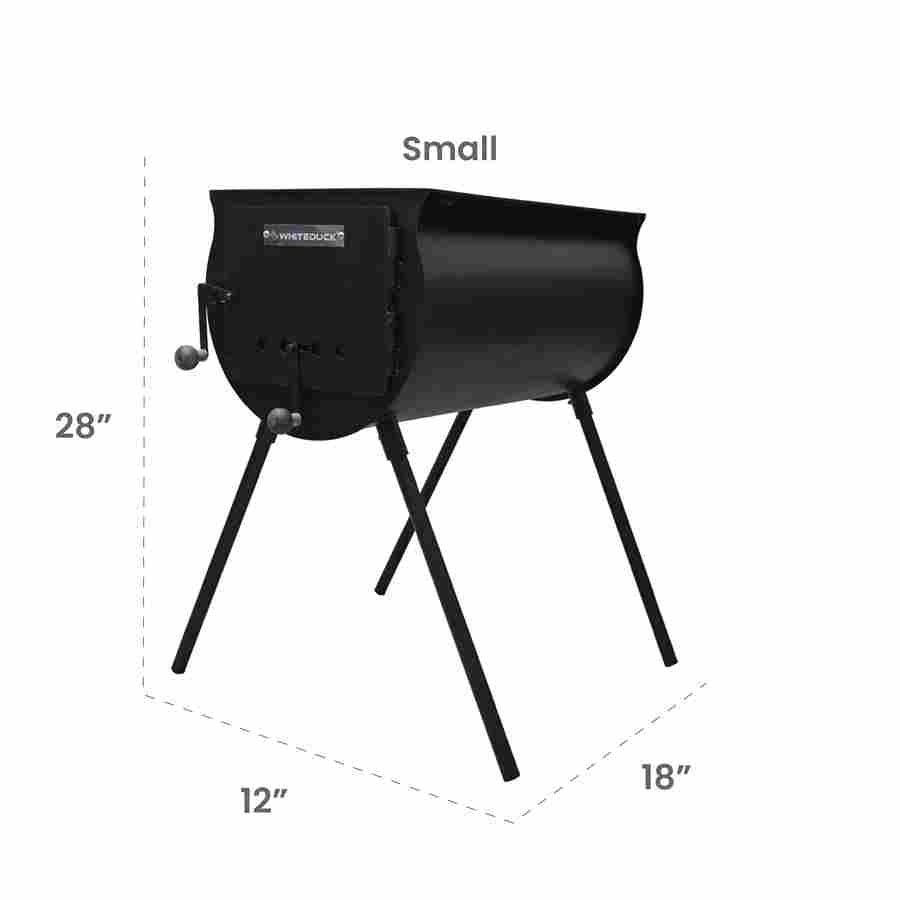

- Firebox Dimensions: 18" x 12" x 10"

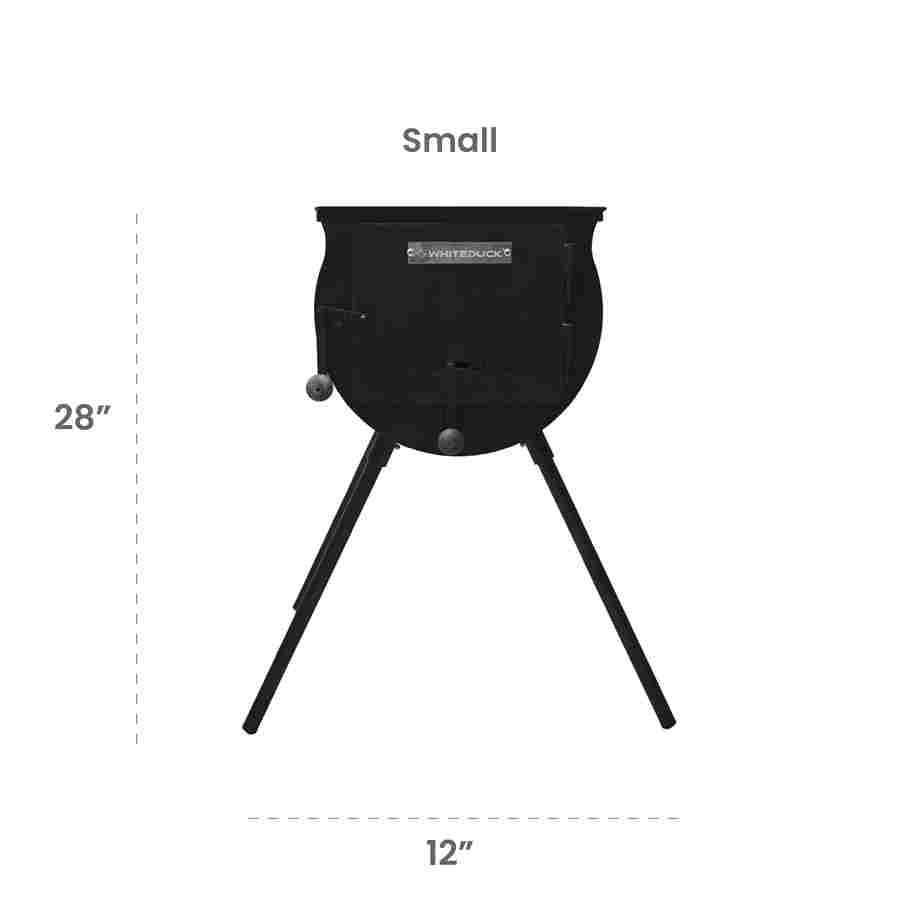

- Stovetop Height: 28"
- Door + Top Surface Thickness: 9 gauge
- Wall Thickness: 12 gauge
- Stove Pipe Diameter: 5"
- Stove Pipe Length: 7.35'

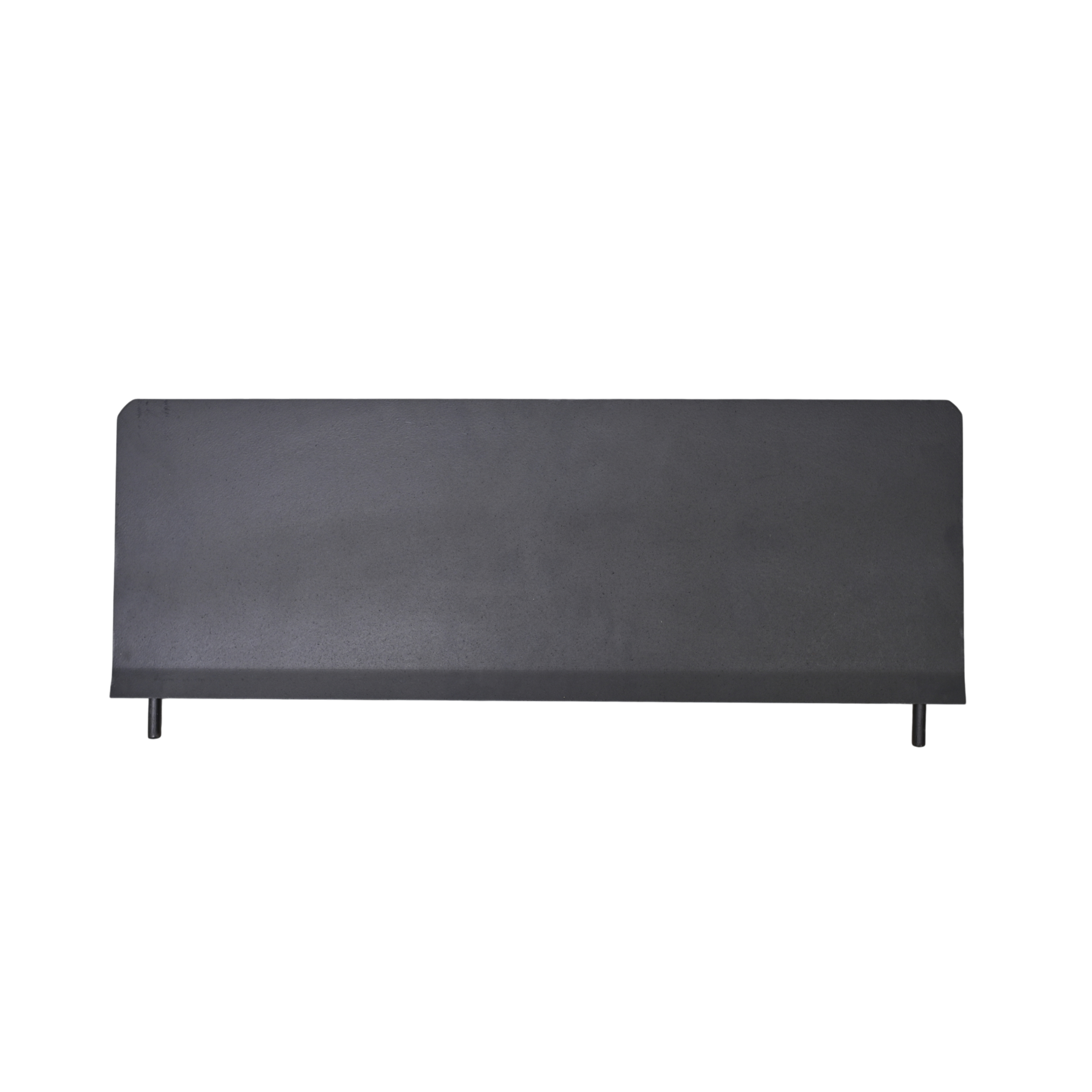

- Warming Tray (shelf): 17" x 7"

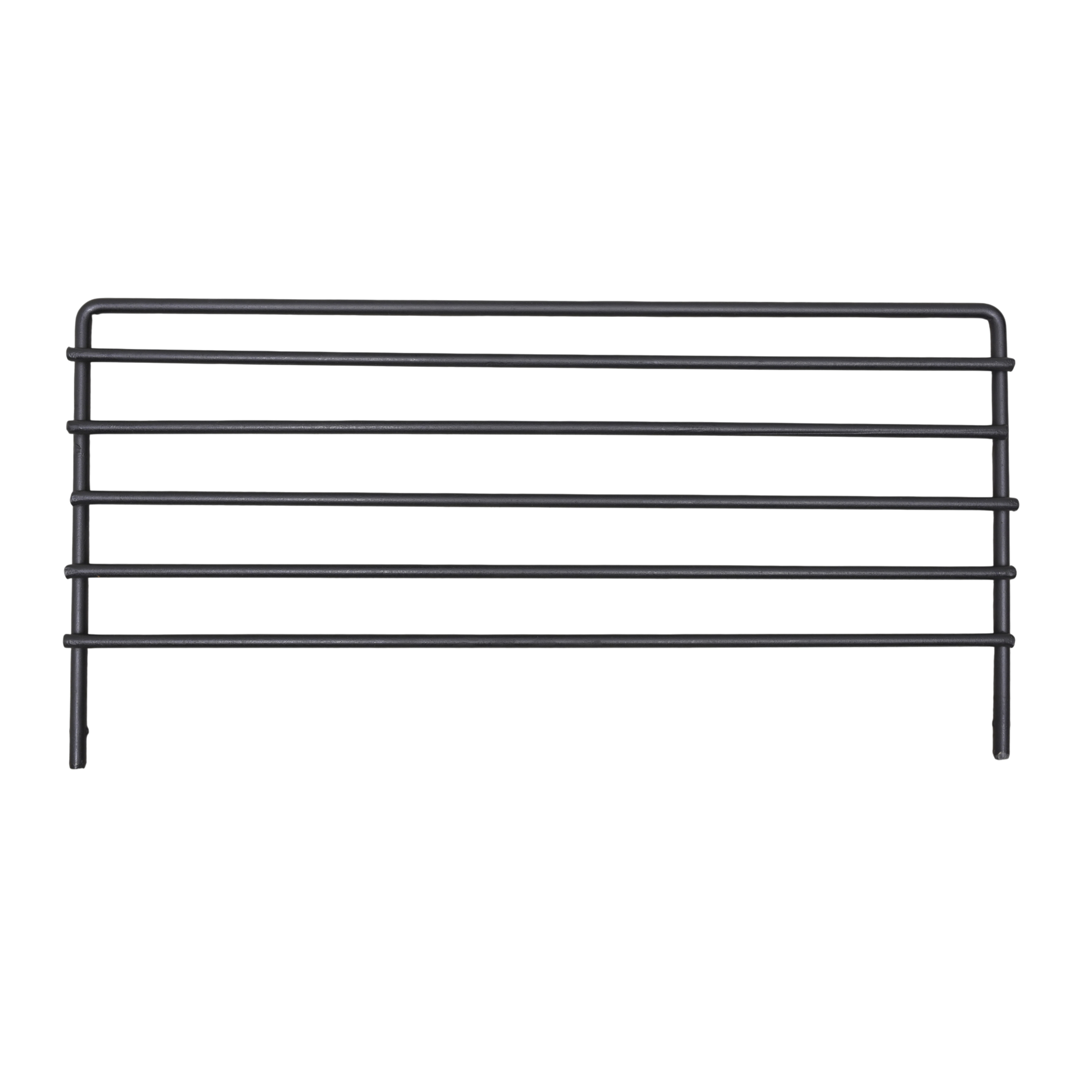

- Warming Tray (grill): 15" x 10"
- Leg Length: 18"
- Included Accessories: Leg poles, nesting pipes, rain cap with spark arrestor, damper, grate, and warming trays
- Packed Dimensions: 20" x 12.5" x 11.5"
- Stove Weight: 51.4 lb.
- Heating Coverage: 80–100 ft²
- Burn Time (wood): 4–6 hr
