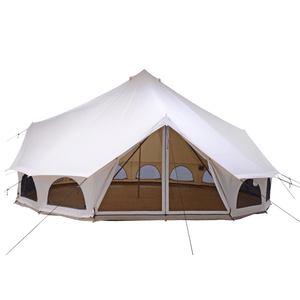

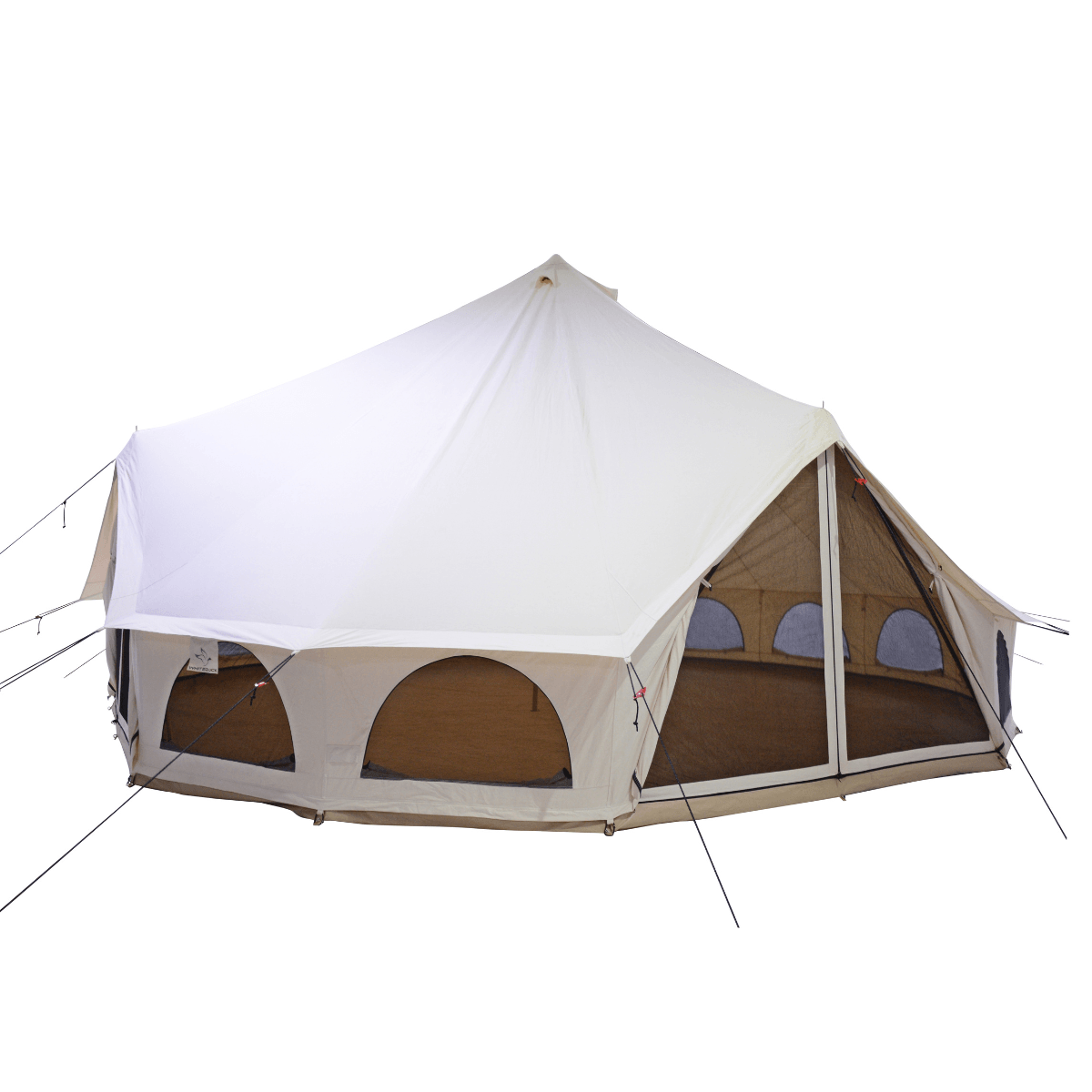

23' Avalon Optimus Bell Tent

With a spacious interior and supreme functionality, the Avalon redefines what it means to camp in luxury.

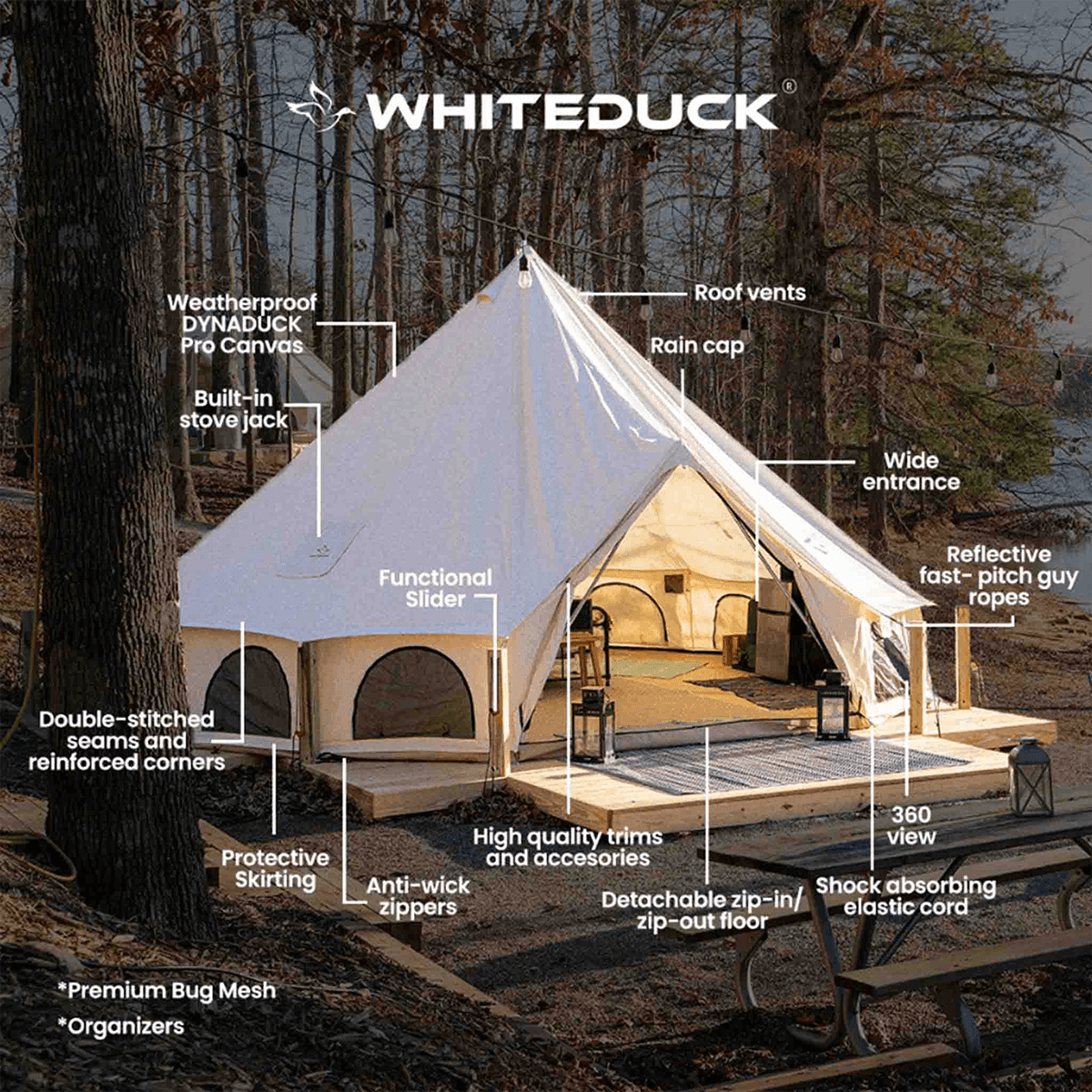

Feature:

• DYNADUCK fabric, with 10.10 oz army duck cotton canvas and a water repellent, mold & UV resistant finish
• Double-stitched seams with reinforced corners for added strength
• Galvanized steel poles for durability and maximum resistance to harsh weather
• Proprietary shock-absorbing grounding system to stand up to harsh weather conditions
• Pre-installed heat resistant silicone-coated stove jack with a 5-inch pre-cut pattern
• Extremely functional tension cord on the door and rain flap
• Built-in roof vents for maximum ventilation
• Premium bug mesh on doors and windows to live bug-free

DOWNLOAD ASSEMBLY INSTRUCTIONS

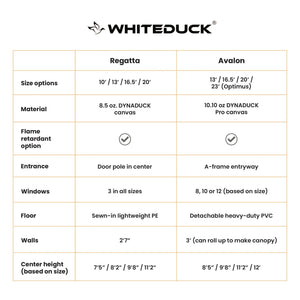

Specification:

• Canvas Type 10.10 oz. Army Duck Cotton Canvas
• Fabric Options Water Repellent, Fire Water Repellent
• Doors 3
• Windows 10
• Bug Mesh No-see-um mesh
• Number Of Stove Jacks 2
• Stove Jack Heat resistant silicone-coated with 5" & 6" pre-cuts
• Floor Material 16 oz. heavy-duty polyvinyl
• Guy Ropes / Adjustable Guylines Polypropylene UV-resistant reflective rope
• Frame Material Galvanized steel center pole & A-frame
• Door Pole (a-frame) 0.984” (25 mm) diameter and 0.047″ (1.2 mm) thickness
• Center Pole 1.653” (42 mm) diameter and 0.078″ (2 mm) thickness
• Roof Vents 4
• Zipper Top grade waterproof zippers
• Electric Cable Outlet Included
• Peg Type Heavy duty solid galvanized steel
• Rubber Mallet 1
• Box 1 (water Repellent) Tent & Groundsheet (46x20x18 inch, 138 lbs)
• Box 2 (water Repellent) Poles & Tool Kit (46x10x10 inch, 72 lbs)
• Box 1 (fire Water Repellent) Tent (46x16x15 inch, 103 lbs)
• Box 2 (fire Water Repellent) Groundsheet, Poles & Tool Kit (46x14x10 inch, 123 lbs)
• Center Height 12' or 370 cm
• Door Height 6'6" or 200 cm
• Wall Height 3' or 90 cm
• Total Weight (lbs) 210 - 226 lbs.

Capacity:

• Floor Space 23' or 7M
• Camping Capacity Sleeps 12
• Glamping Capacity Sleeps 6
