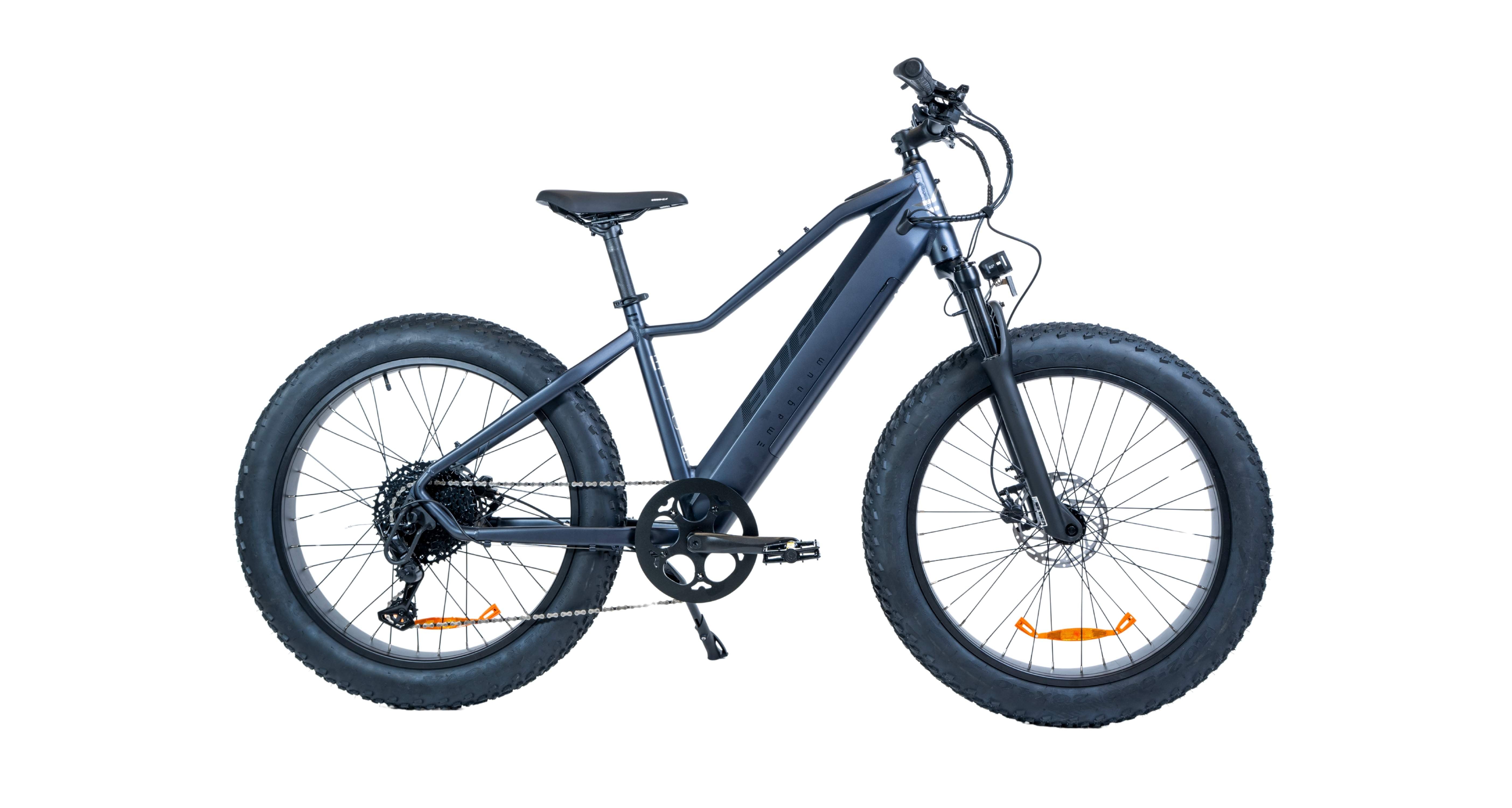

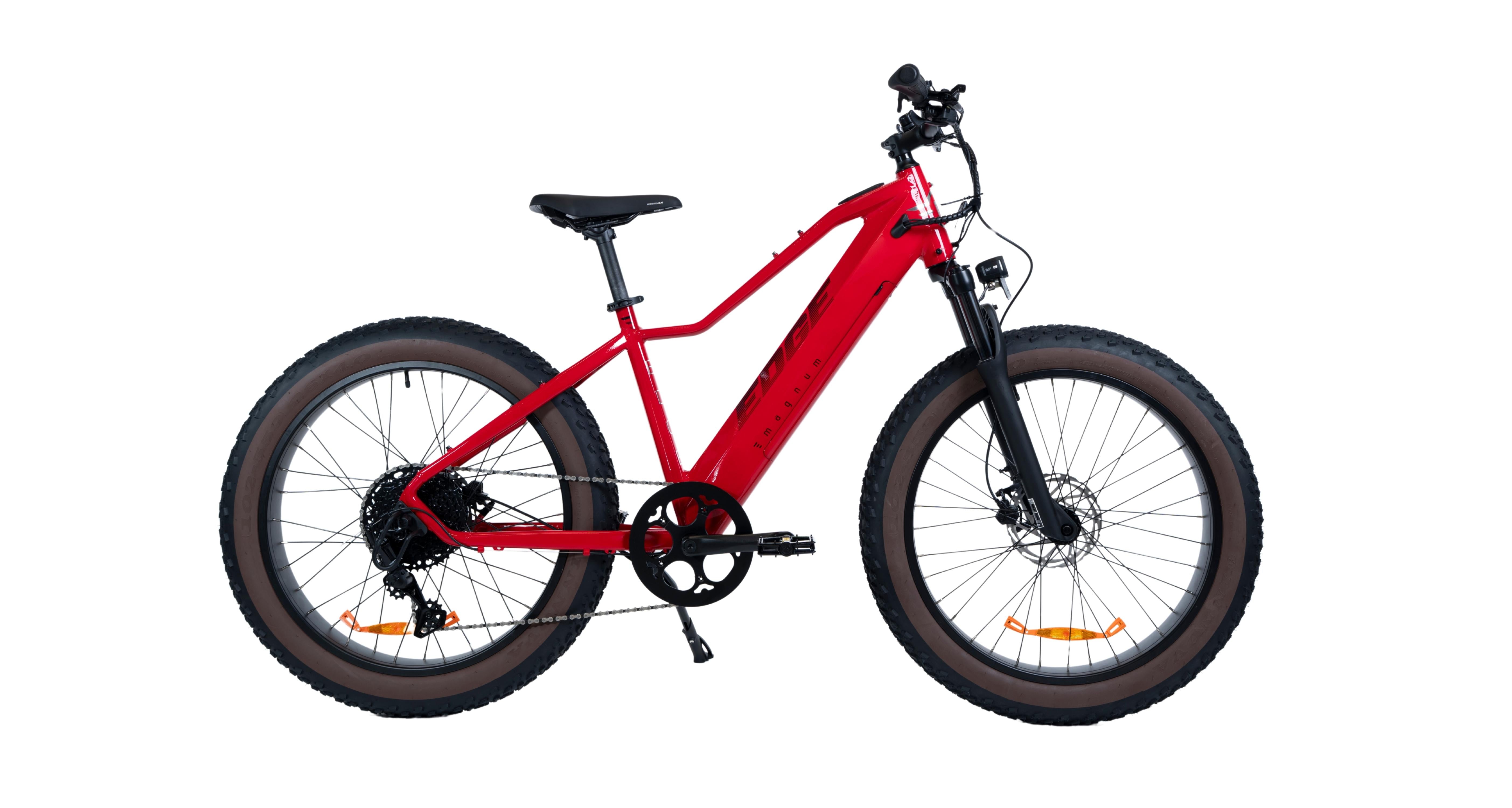

A bike that redefines off-road adventure! The Magnum Edge combines powerful 750W performance with rugged fat tire capability for trail-conquering riders. Whether you're exploring backcountry trails, hunting remote areas, beach riding, or tackling snow-covered paths, the Edge will power your adventures with confidence, control and capability.
Electronic Details
- Motor Brand Sutto
- Motor Type Hub-Drive; brushless; planetary geared
- Motor Nominal Output 750 Watts
- Motor Peak Output 1,000 Watts
- Battery Voltage 48 Volts
- Battery Ah 15Ah
- Battery Wh 720Wh
- Battery Chemistry Samsung 21700, Li-NMC, UL2271 & UL2849 Certified
- Battery Charge Time (from empty) 6.5 Hours
- Minimum Range 15 Miles (24 Kilometers)
- Maximum Range 50 miles (80 Kilometers)
- Display Type VeloFox Frame-Integrated Color Display
- Display Readouts Battery Level, Assist Level, Current Speed, Power Output, Trip Distance, Odometer, Range, Trip Time, 24hr clock
- Drive Mode Torque Sensor Pedal Assist, Thumb Throttle, Walk Mode
- Top Speed Up to 28 mph with Pedal Assist, 20 mph with Throttle
- Lights Integrated 80 lumen front light and optional rear light (mounts to optional rear rack)
Mechanical Details
- Frame material Aluminum Alloy
- Frame Type High-step, Integrated top tube display, integrated battery, one- size- fits- most fat tire mountain frame
- Fork Details FAT-34mm x 26inch wheel, thru-axle, 100mm travel, w/ lock out
- Gearing details Microshift Advent X 10 speed
- Shifter Details Microshift Advent X 10 speed
- Crank Aluminum Alloy 170mm
- Pedals Wide alloy Platform with Reflectors
- Stem Magnum alloy 60mm length, 31.6mm
- Brakes Tektro Hydraulic 180mm rotors
- Grips Lock-on ergonomic MTB
- Saddle Selle Royal Essenza +
- Tire Brand Innova 26 x 4.0 knobby
- Wheel size 26 inch

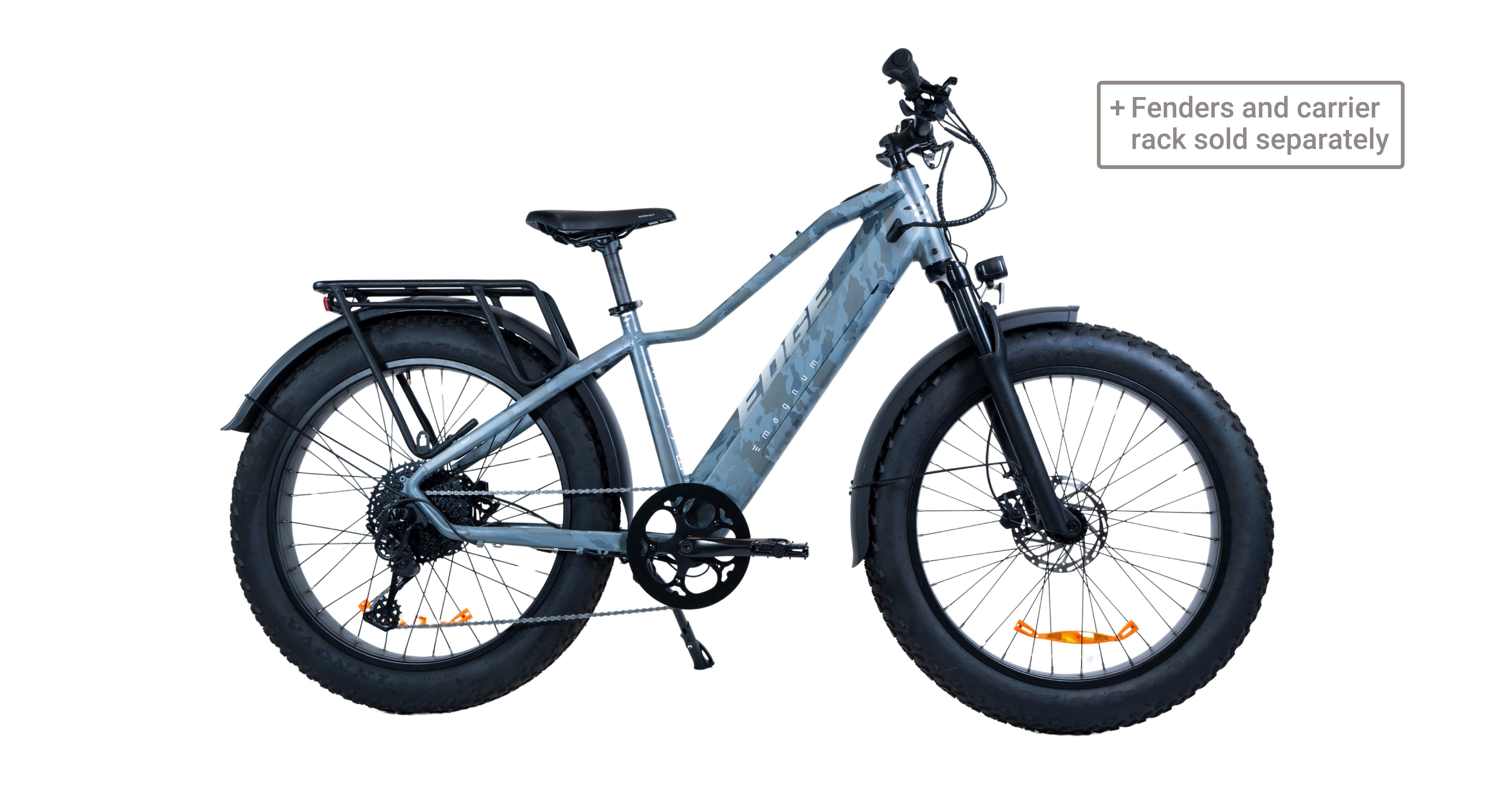

- Fenders Front and rear available (not included)
- Chain KMC X10
Measurements
- Seat Tube 19” (48 cm)
- Reach 16.5” (42 cm)
- Stand Over Height 29” (74 cm)
- Virtual Top Tube Length 25” (64 cm)
- Min Saddle Height 34” (86 cm)
- Max Saddle Height 41” (104 cm)
- Width 28.75” (73 cm)
- Wheelbase 47” (119 cm)
- Length 75” (190 cm)
- Total Weight 80 lbs (36 kg)
- Battery Weight 9.3 lbs ( kg)
- Recommended Minimum Rider Height 5’4”
- Max Load Capacity 330 lbs. (150 kg)
What’s Included
- Kickstand Center-Mounted Single Side Adjustable Length
- Bell Bell with AirTag/M-Tag compatibility (tracking device sold separately)
- Charger 54.6V 2A Charger
- Front Rack Compatible with Magnum Multi-Purpose Cargo Basket (basket sold separately)
- Rear Rack Compatible with rear carrier rack (rack sold separately)
- Fenders Compatible with front and rear fenders (fenders sold separately)
- Accessory Mounts Built-In Head Tube and Top Tube Accessory Mounts
